DES H93 3 In 1 rework station soldering iron hot air gun smoke purifier
hree-in-one multi-functional comprehensive maintenance soldering station
| Model | H93 |
| Display | LCD Display |
| Power | 1650W |
| Voltage | AC220V/50Hz AC110V/60Hz |
| Host size | 280(L)*197(W)*140(H)mm |
| Host weight | 2.7Kg |
| Soldering iron | |
| Model | S90D |
| Power | 90W |
| Temperature range | 80-500℃ |
| Tip to ground resistance | <2Ω |
| Tip to ground potencial | <2Mv |
| Soldering tips | TD Series |
| Heater | A1529 |
| Output voltage | 24V |
| High temperature resistant set of head | GT06 |
| Cable length | 1.2m |
| Handle weight | 100g |
| Hot air gun | |
| Model | H15 |
| Power | 1500W |
| Temperature range | 80-500℃ |
| Temperature stability | ±5℃ |
| Air volume | 10-80 level |
| Dc turbofan | 24v/8300 rotation |
| High temperature resistant set of head | GP5/GP6(GP5 Purchase separately) |
| Heater | 220V/A1526B 110V/A1525B |
| Output voltage | AC220V/50Hz AC110V/60Hz |
| Cable length | 1.2m |
| Weight | 252g |
| Smoke purifier | |
| Power | 30w |
| Suction | 0-4 level adjustable |
| Display | LCD Display |
| Smoke cleaning pipe (mm) | tube:800(L)x41(inner diameter) Tube mouth:118(L)X68(W) |
| LED Light | 0-4 level adjustable(12V/2W) |
| carbon ion filters | 52(W)X115(L)X10(H)mm |
| Motor | 12v/8500rmp |
| Voltage | 24V |
| USB specification parameters | |
| Current Output | 2A |
| Output voltage | 4.2V/5V(interconvertible) |
| Apply to | Phone charging/phone maintenance |
| Tip to ground resistance | <2Ω |
| Tip to ground potencial | <2Mv |

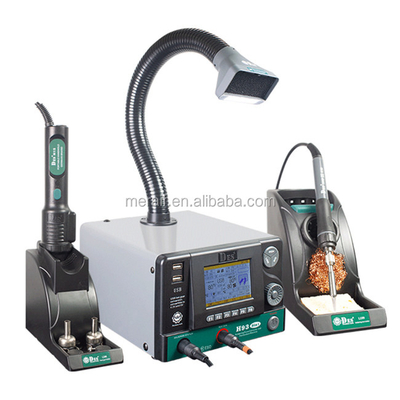

hot air gun smoke purifier picture show:
