For zebra scanner LS1203 Handheld linear laser scanner Wireless Barcode Scanner Industrial Dustproof Ip67 Barcode Scanner
whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322
This bi-directional LS1203 handheld scanner handles all 1D bar codes and is ideal for small retailers. It delivers the functionality, features and reliability needed to improve operational efficiencies from the check-out line to the storeroom. It minimizes manual keying — ensuring accuracy in all customer transactions — and it automates paper-based inventory processes. The device easily integrates multiple interfaces to help ensure connectivity to a host and PC system.
| Scanner Type | Bi-directional |
| Light Source (Laser) | 650nm laser diode |
| Scan Rate | 100 scans per second |
| Print Contrast Min | 30% minimum reflectance |
| Roll (Tilt) | 1 ± 30° from normal |
| Pitch | 2 ± 65° |
| Skew (Yaw) | 3 ± 60° |
| Decode Capability | UPC/EAN, UPC/EAN with Supplementals, UCC/EAN 128, Code 39, Code 39 Full ASCII, Code 39 TriOptic, Code 128, Code 128 Full ASCII, Codabar, Interleaved 2 of 5, Discrete 2 of 5, Code 93, MSI, Code 11, IATA, GS1 DataBar (formerly RSS) variants, Chinese 2 of 5 |
| Interfaces Supported | RS-232; Keyboard Wedge; USB |
| Operating Temp | 32° to 122° F/0° to 50° C |
| Storage Temp | -40° to 158° F/-40° to 70° C |
| Humidity | 5% to 95% relative humidity, non-condensing |
| Drop Specs | Withstands multiple 5 ft./1.524m drops to concrete |
| Ambient Light Immune to direct exposure of normal Immunity | office and factory lighting conditions, as well as direct exposure to sunlight |
| Beeper Volume | User-selectable: three levels |
| Beeper Tone | User-selectable: three tones |
| Electrostatic Conforms to 15 kV air discharge and 8 kV Discharge (ESD) | of contact discharge |
| Electrical Safety | UL1950, CSA C22.2 No. 950, EN60950/IEC950 |
| EMI/RFI | FCC Part 15 Class B, ICES-003 Class B, European Union EMC Directive, Australian SMA, Taiwan EMC, Japan VCCI/MITI/Dentori |
| Laser Safety | IEC Class 1 |

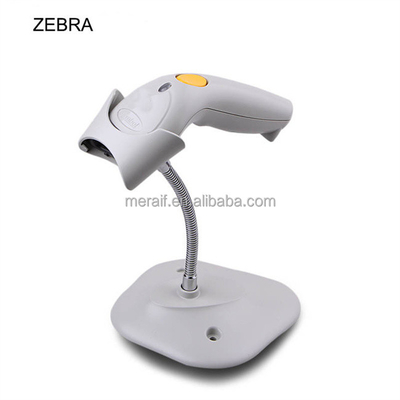

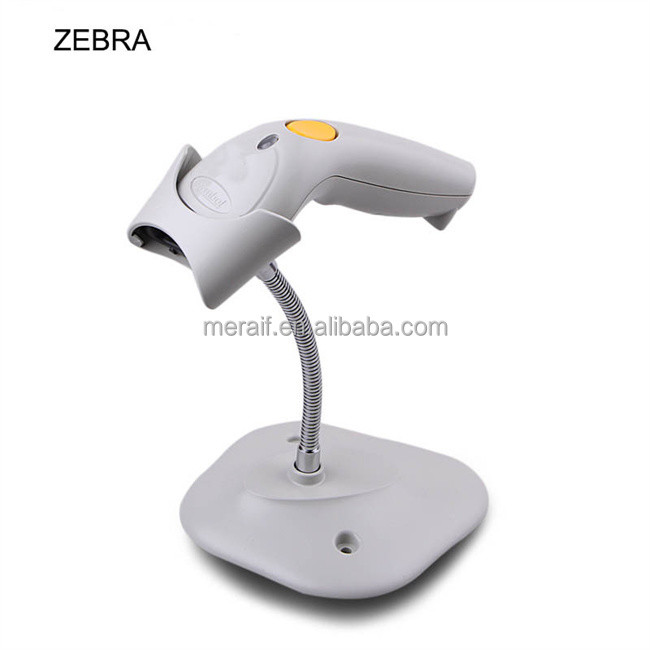

Handheld linear laser scanner picture show:
