zebra scanner DS3678 Industrial IP65 QR Code Scanner Wireless Handheld 2D Barcode Scanner With Base
whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322
| Technical Parameters | |
| light source | Laser/CCD/COMS |
| CPU | 32bit |
| Scanning Type | bi-directional |
| Decoding speed | 200scans/sec |
| Resolution | 4mil(0.10mm) |
| Scanning width | 30mm/220mm/200mm |
| Depth of Field | 0-1500mm |
| Scanning angle | Angle of rotation±30°/ inclination± 65°/ declination ± 60° |
| Interface | RS232 / USB Keyboard |
| Printing Contract | ≥25% |
| Bit error rate | 1/5millon |
| Indication | Buzzer & LED |
| Trigger Mode | Handheld/Continuous |
| Physical Parameter | |
| Size | L*W*H 165mm*67mm*97mm |
| Weight | 135g |
| Material | ABS+PC+TPU |
| Cable | 1.5m |
| Electrical Parameters | |
| Voltage | 5V |
| Operating current | 70mA |
| Standby mode | 36mA |
| Compatibility | CE & FCC DOC compliance |
| Temperature | |
| Working | -20℃-50℃ |
| Storage | -40℃-60℃ |
| Humidity | Relative humidity 5%-95% |
| Brightness | 0-10000lux |
| Package level | IP54 |

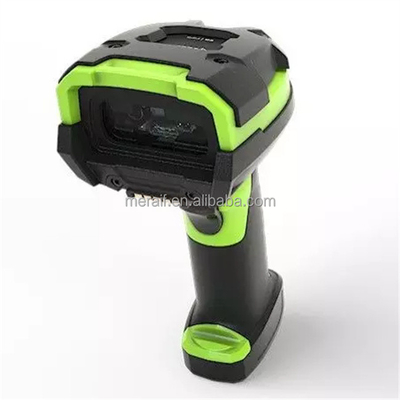

Barcode Scanner picture show:
